YEAR:

203

GLASS:

VISION 52T

Aluminum contractor:

Shefer Aluminum Industries Ltd

Aluminum Consultant:

YORM MAROM

Architect:

Zarchi Architects

Product type:

Double glazing, Laminated glass

Project Scope:

22,000 sqm

OLIVAX

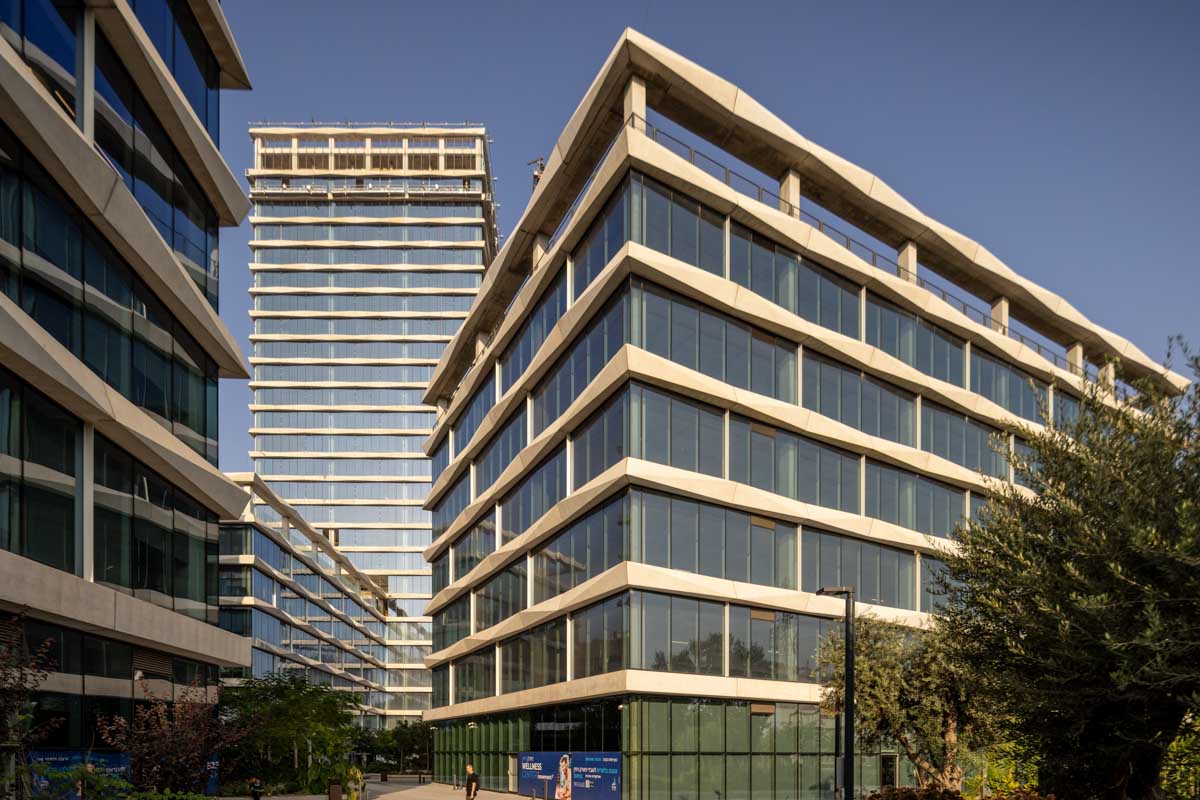

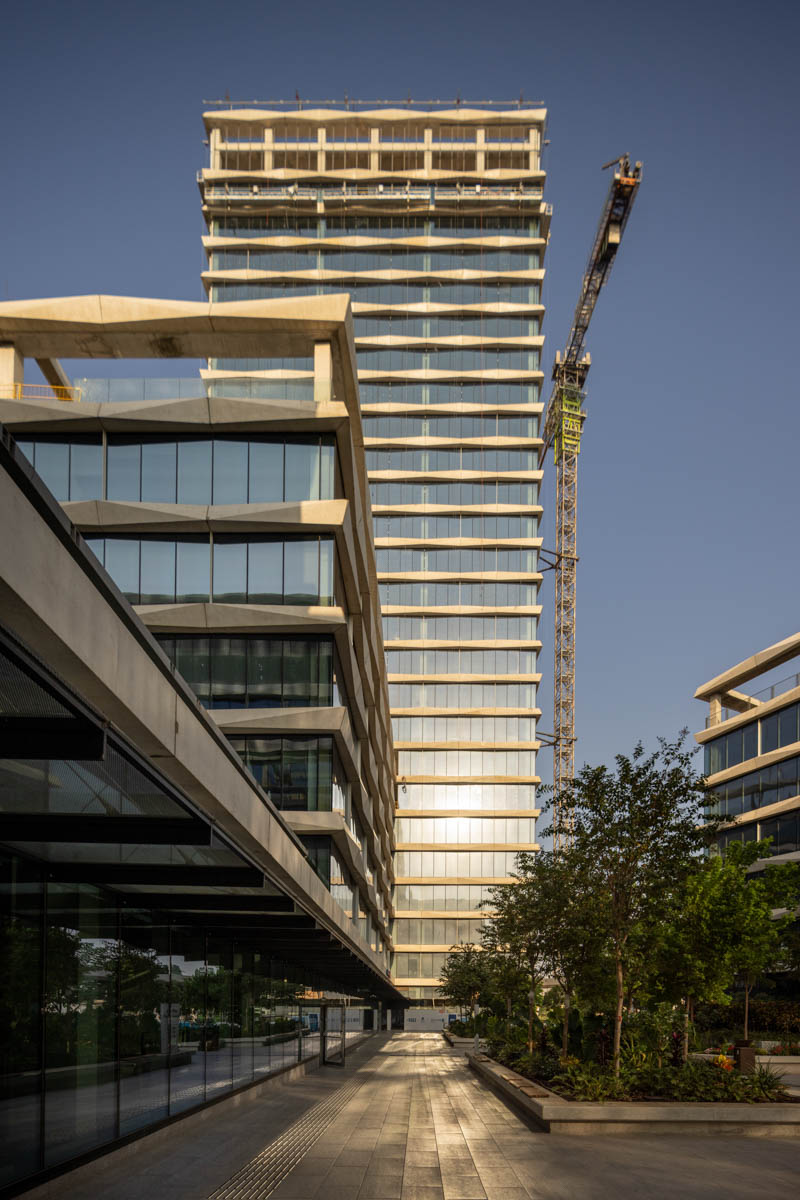

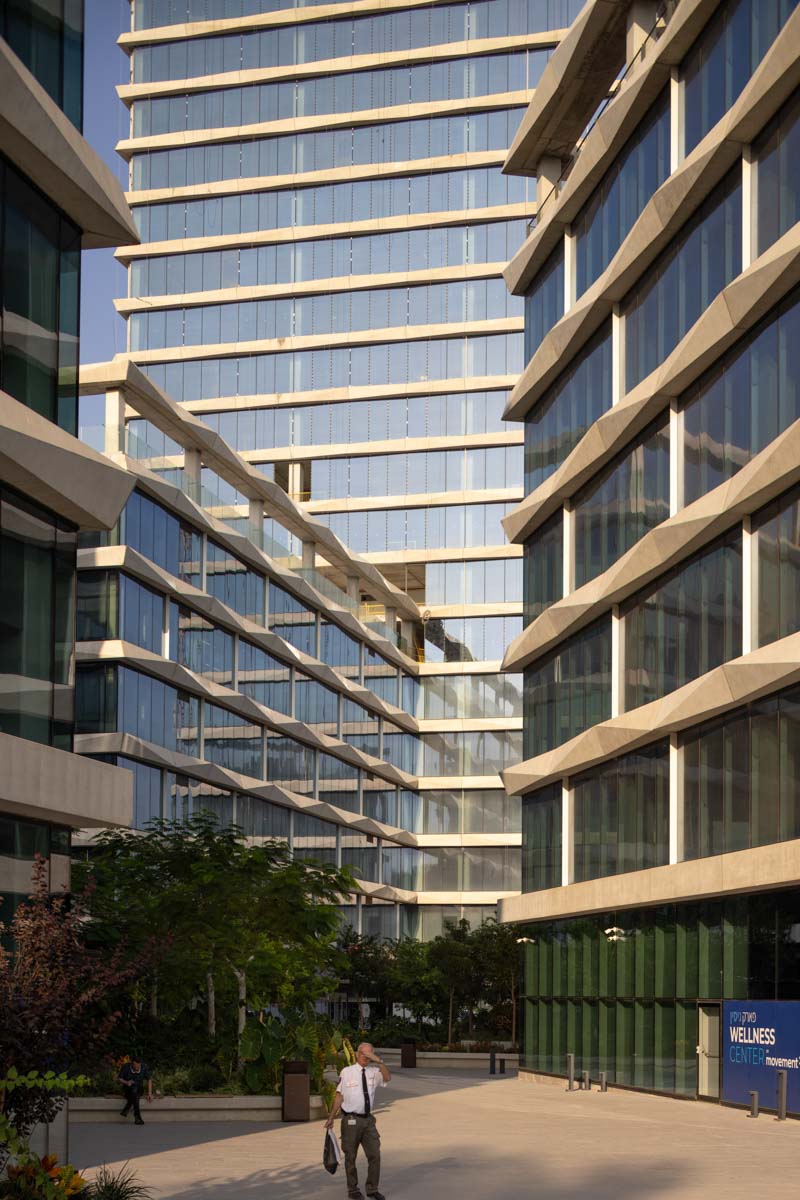

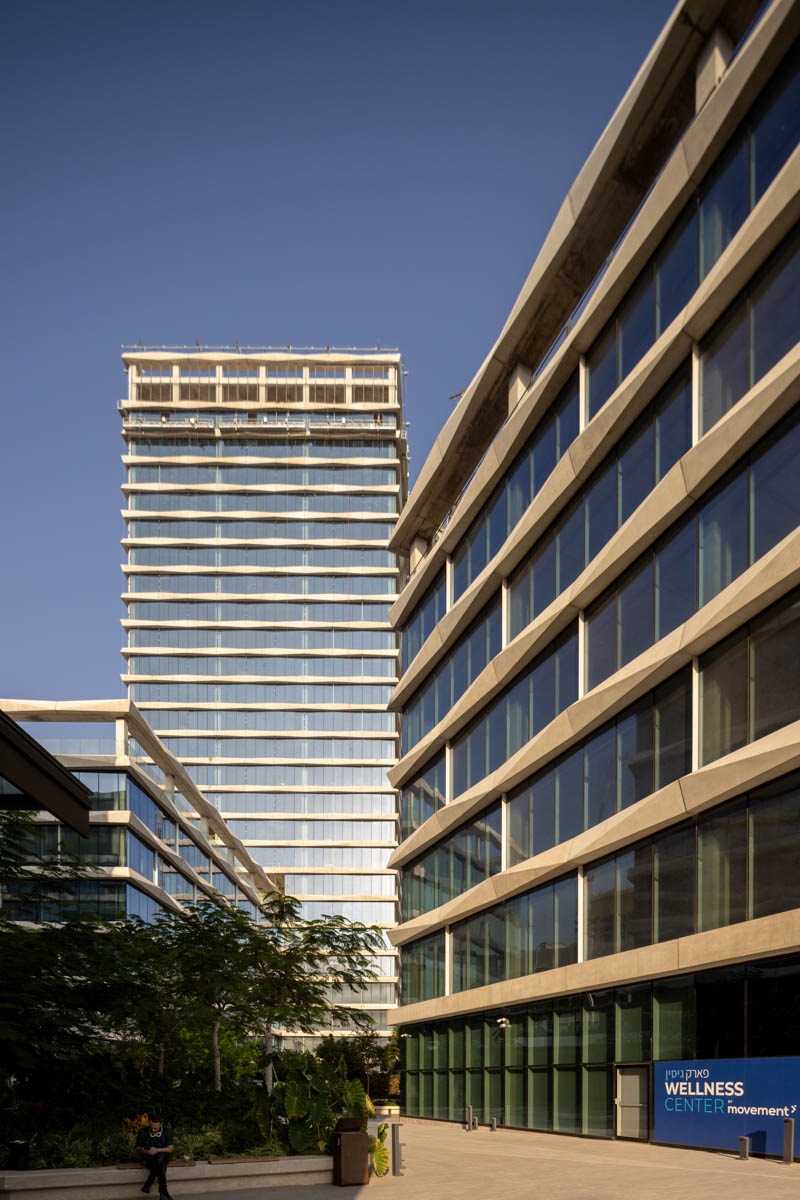

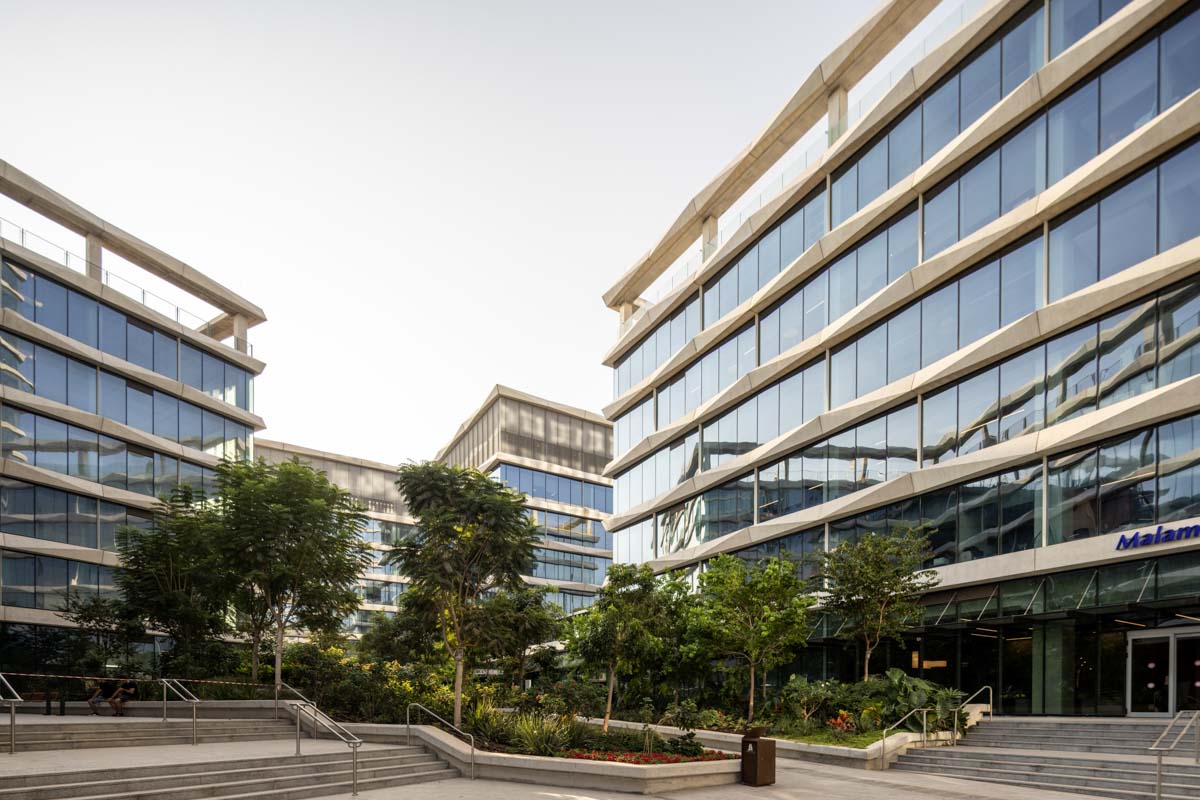

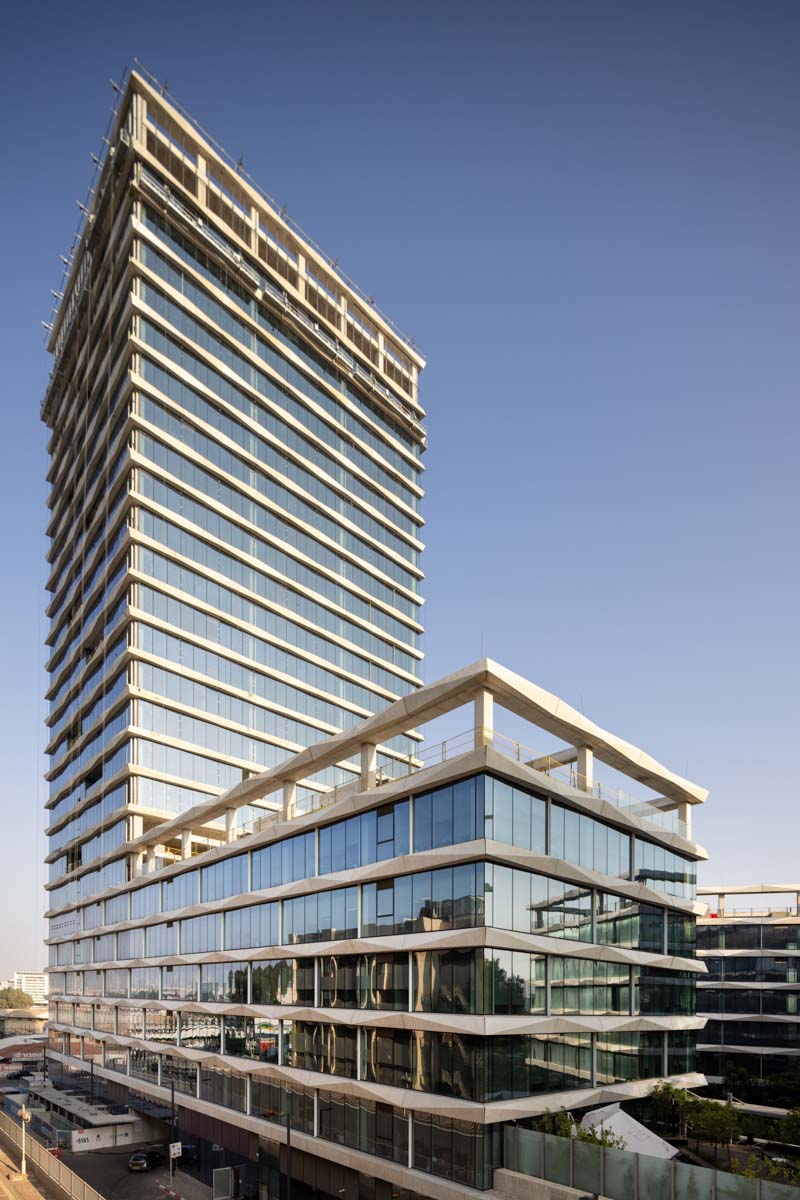

The complex, spanning 15 dunams, consists of two 5-story buildings and an additional tall building rising to 25 stories.

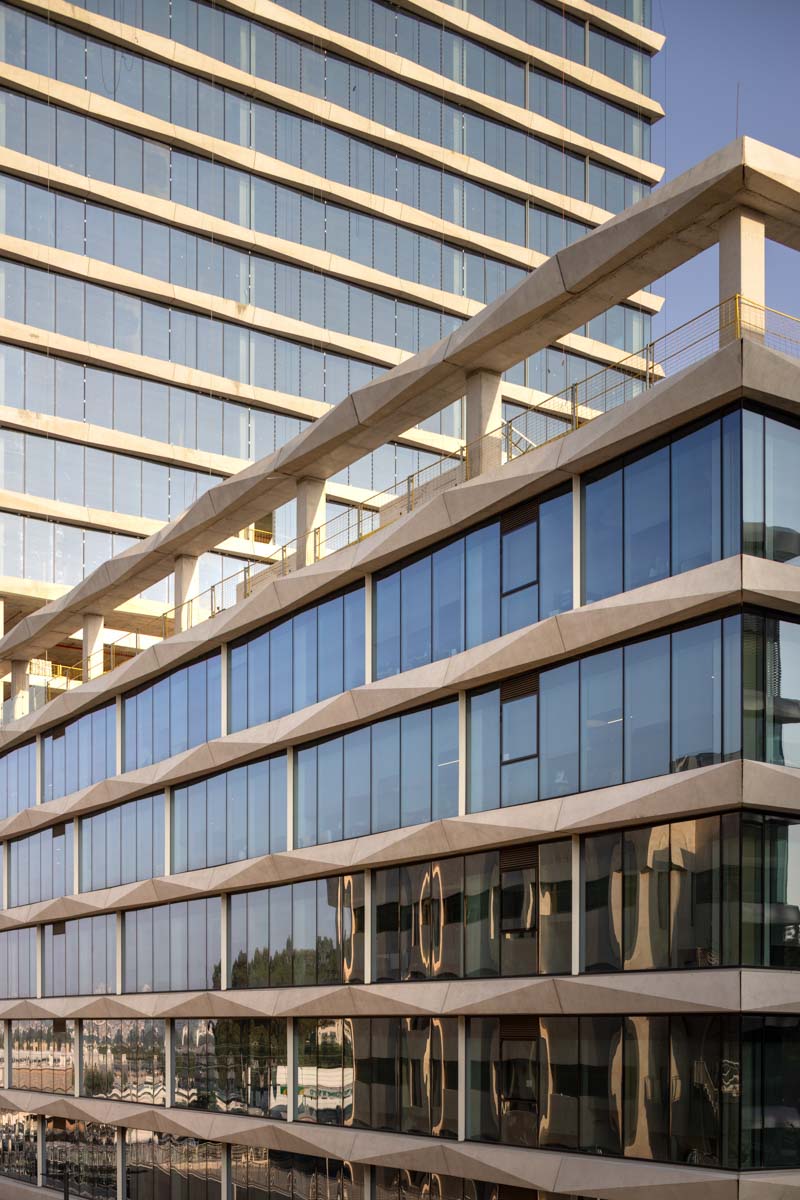

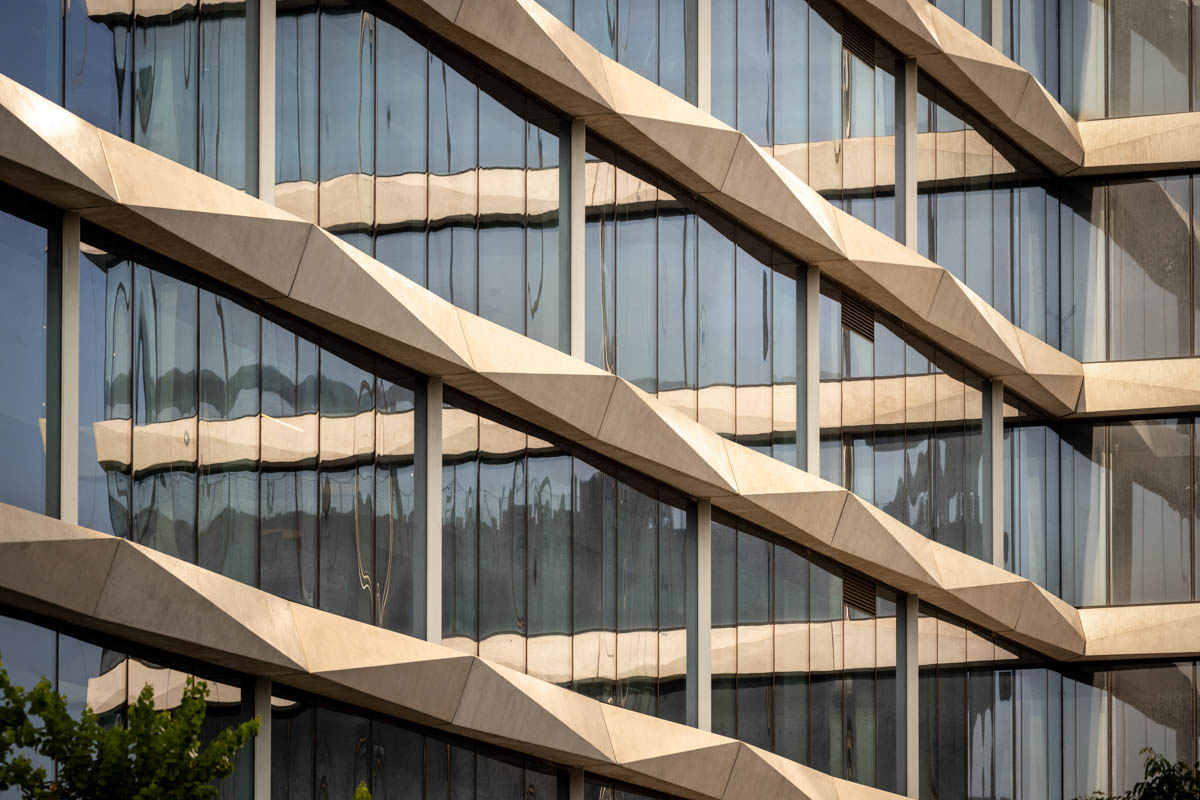

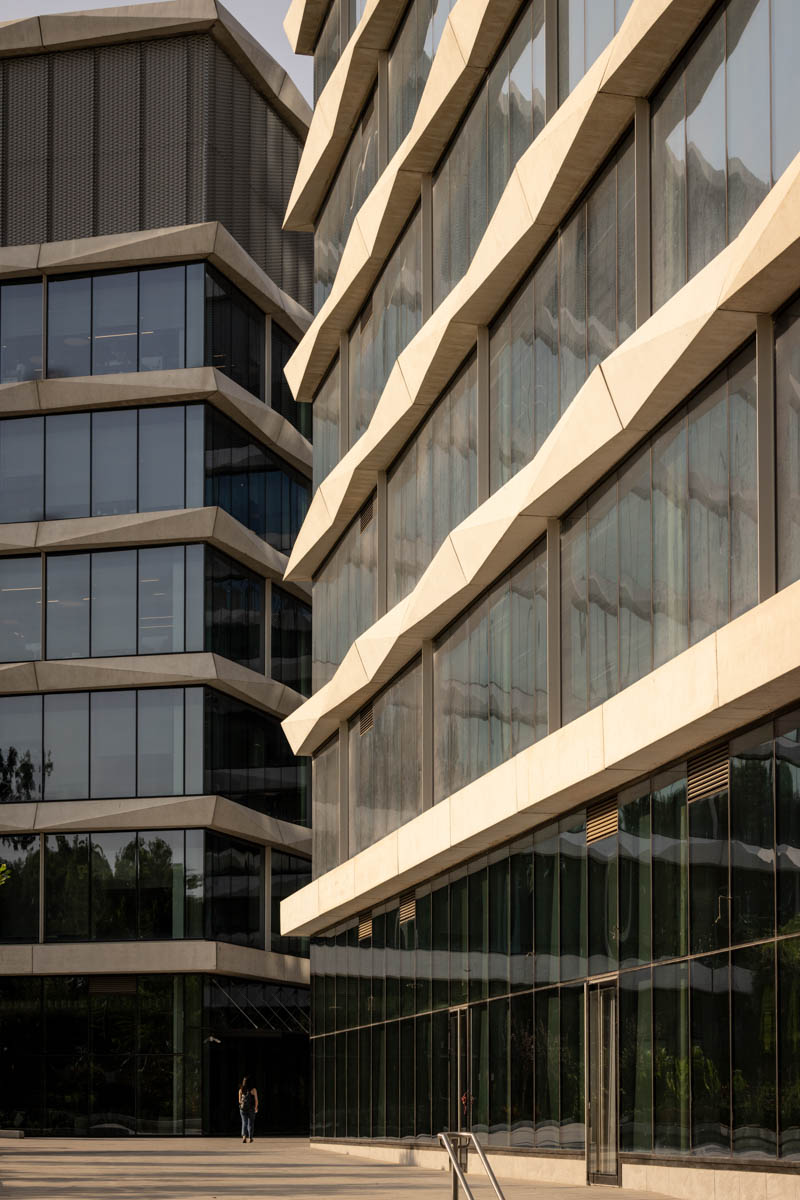

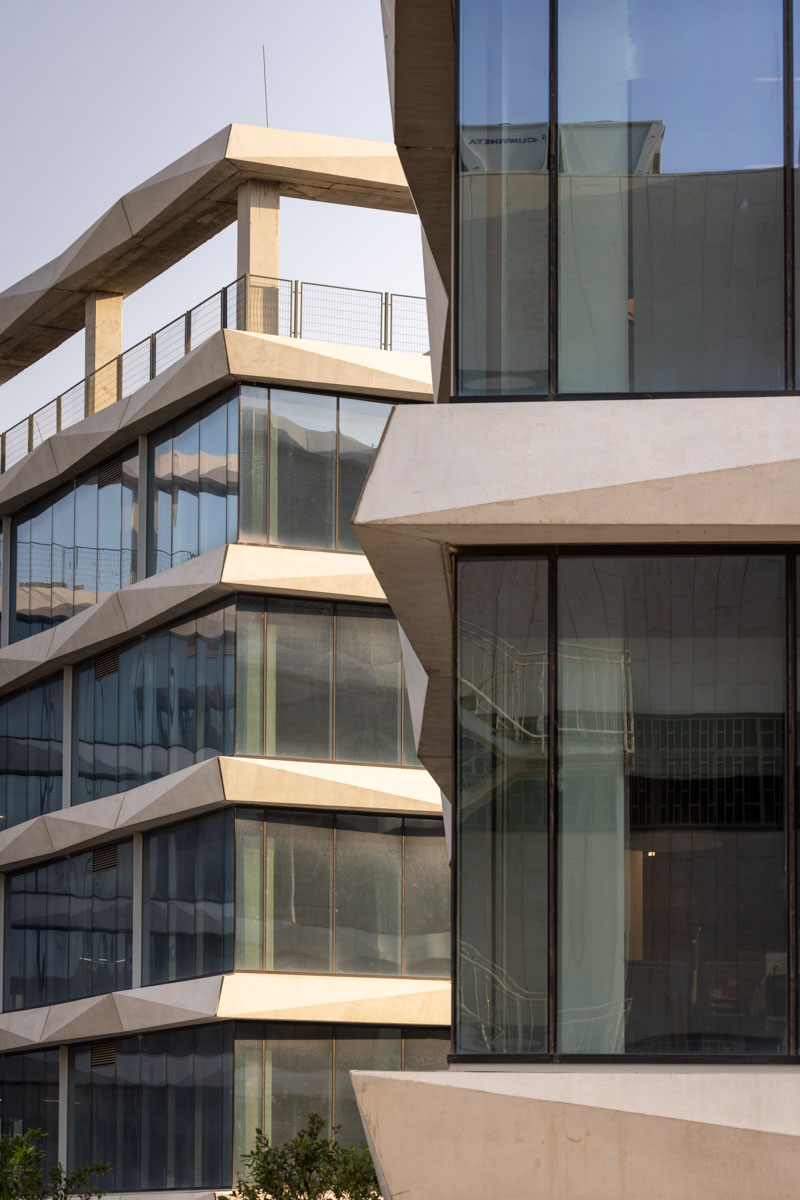

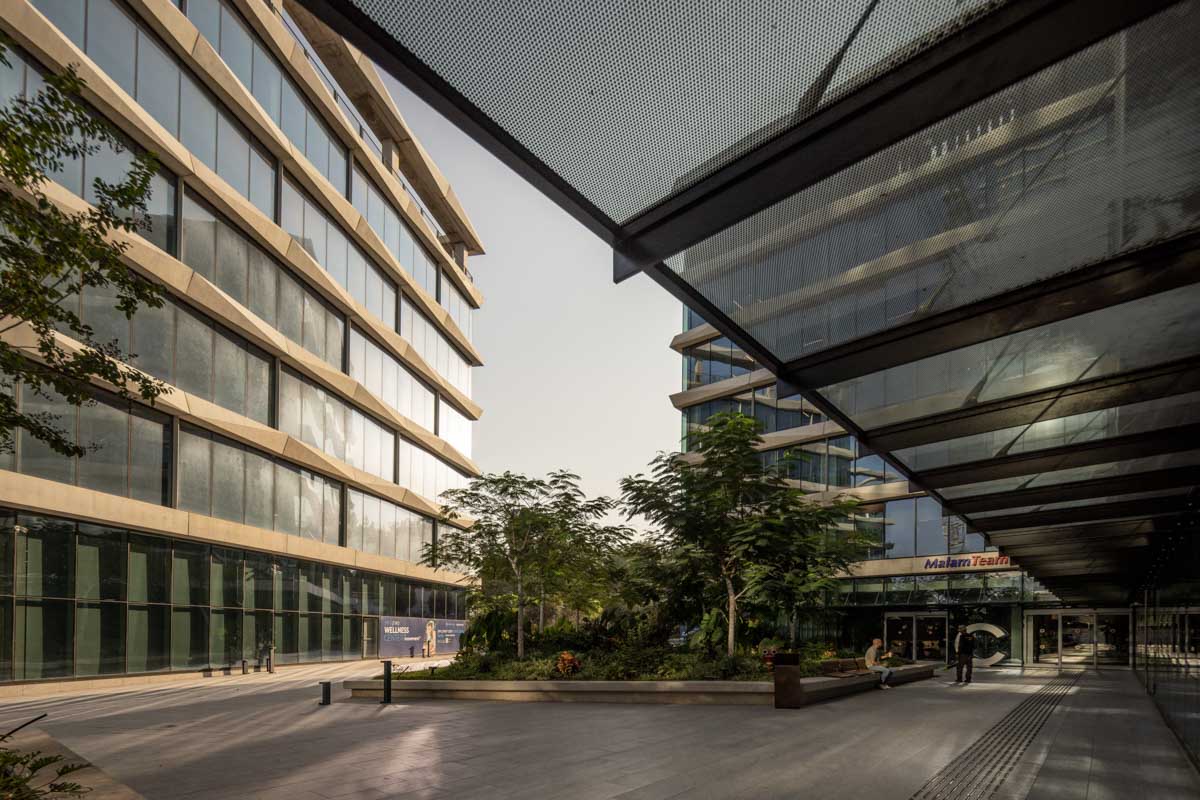

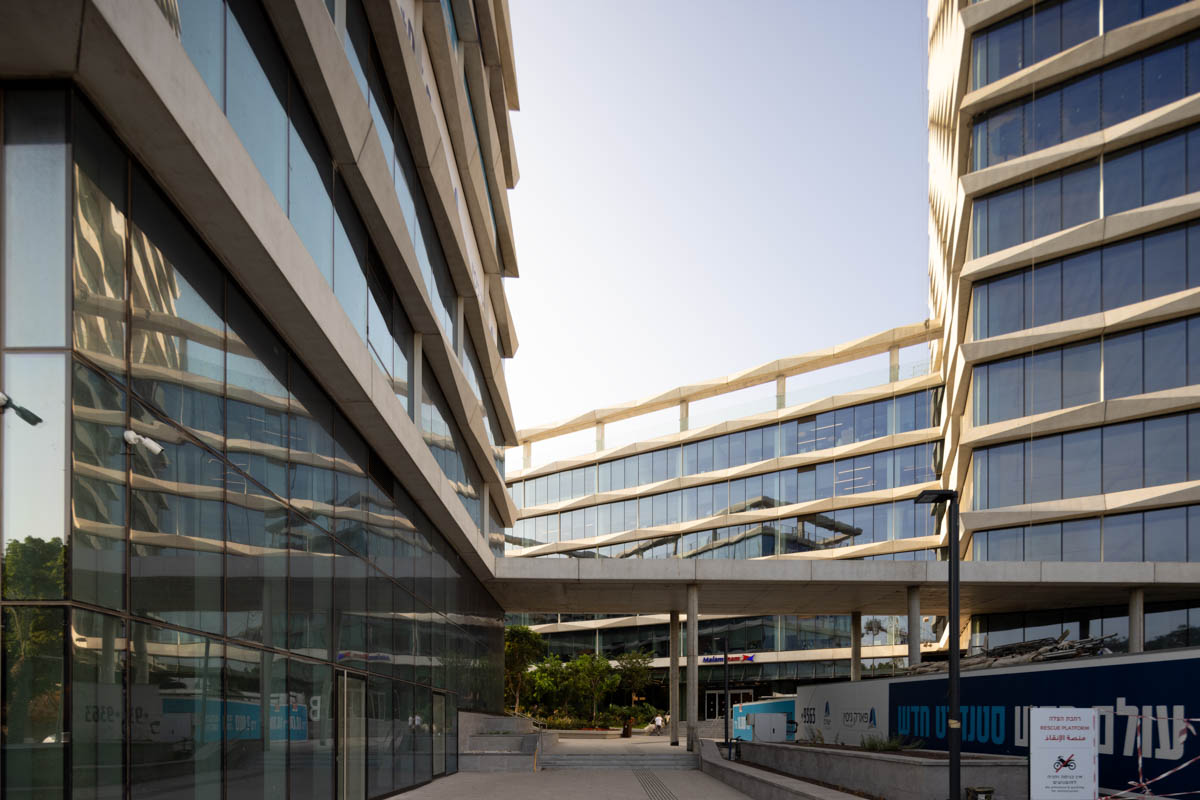

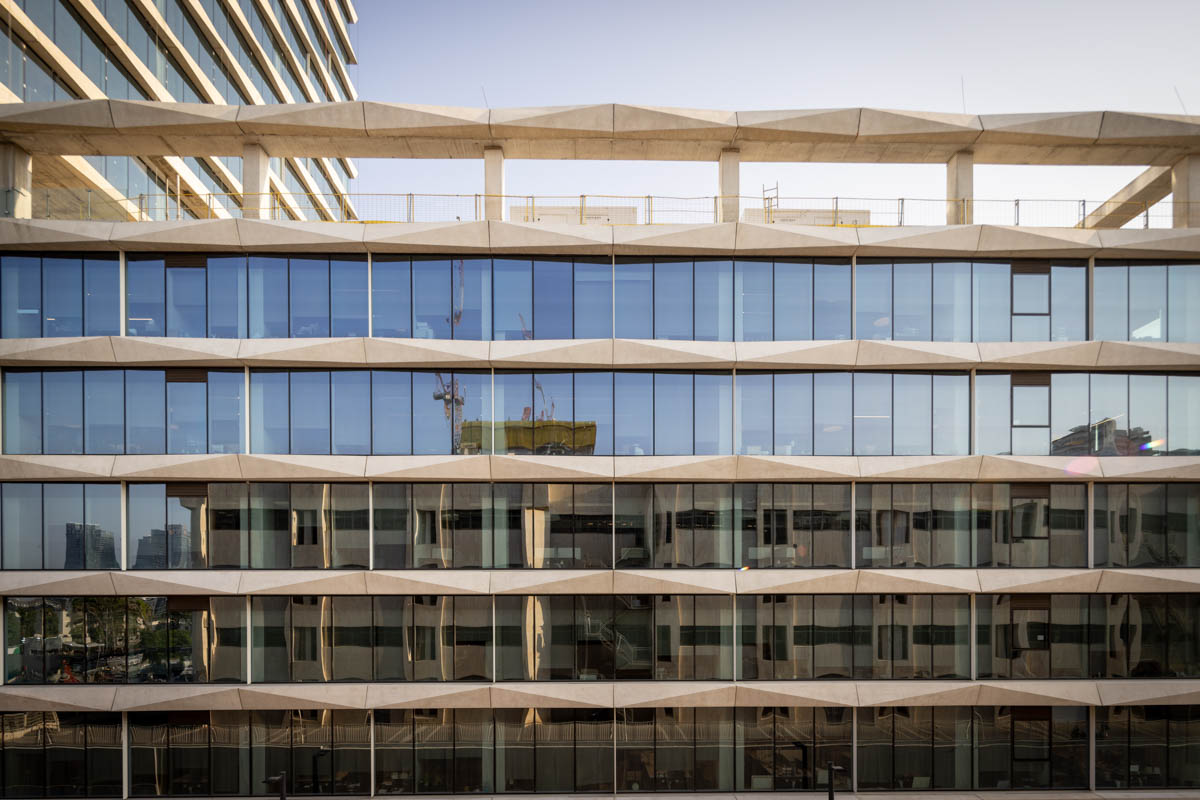

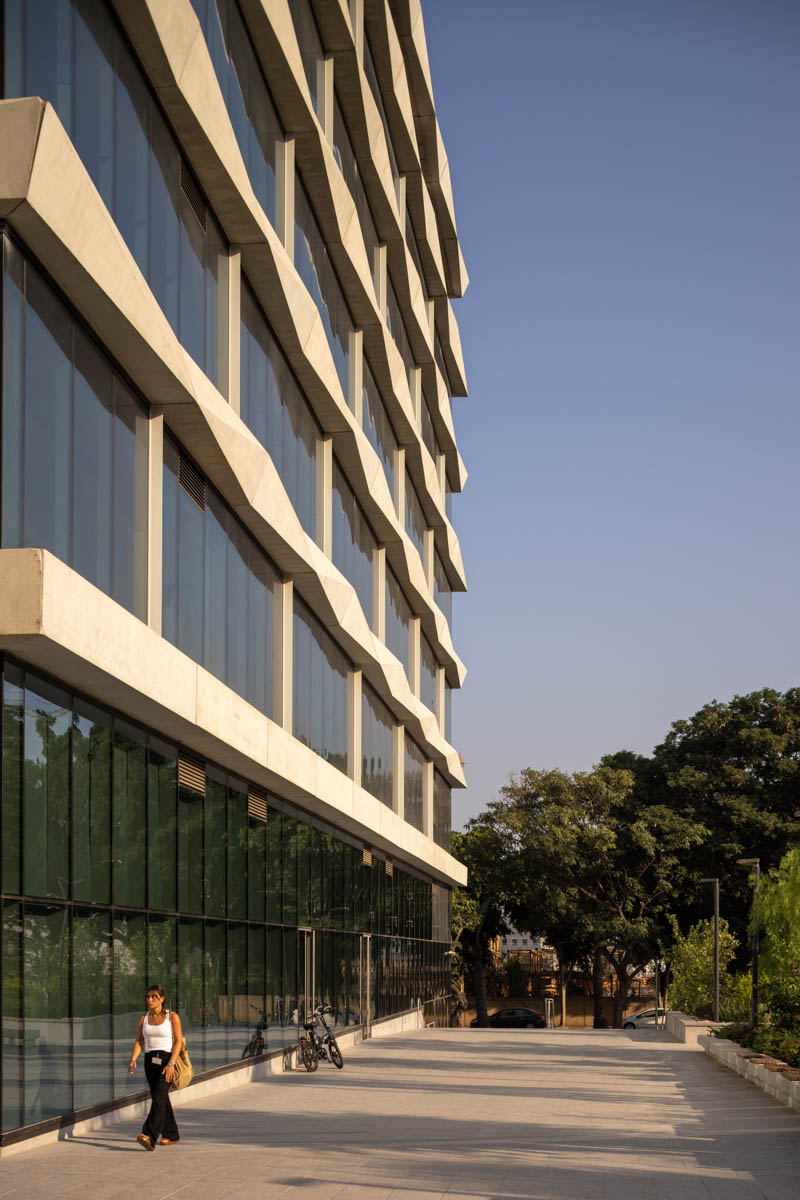

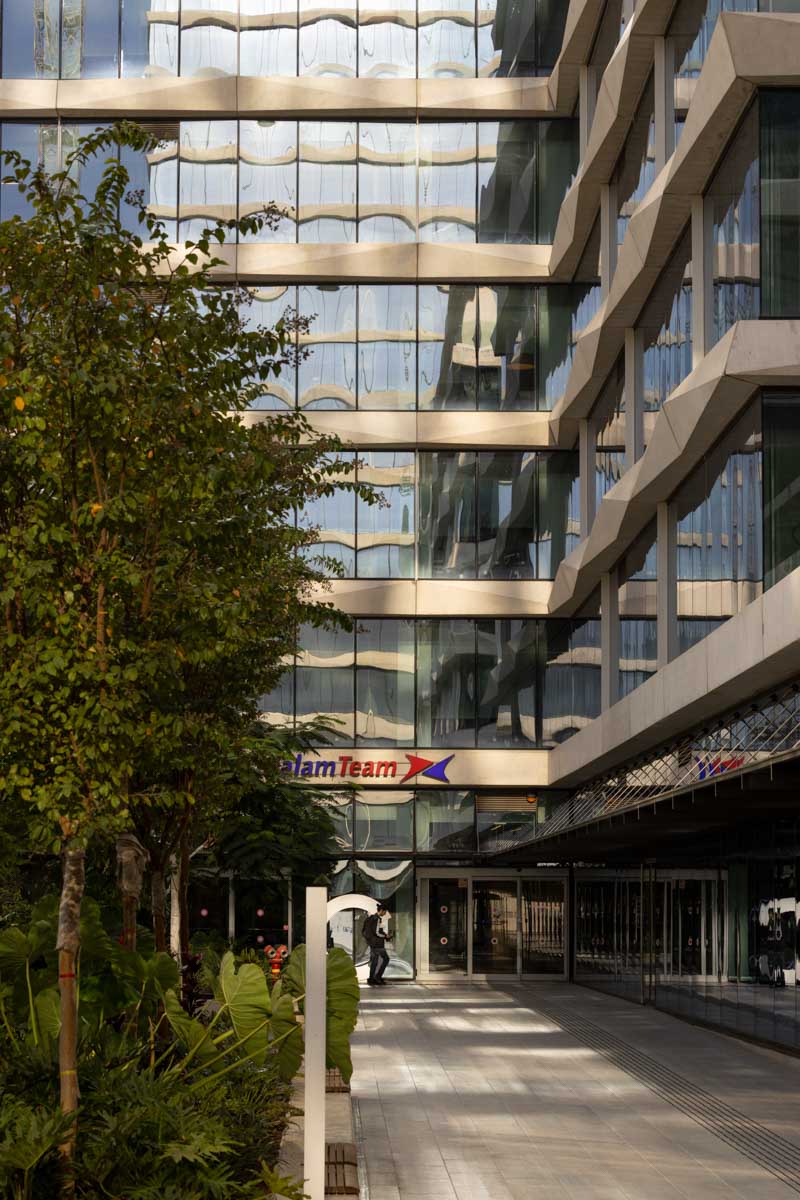

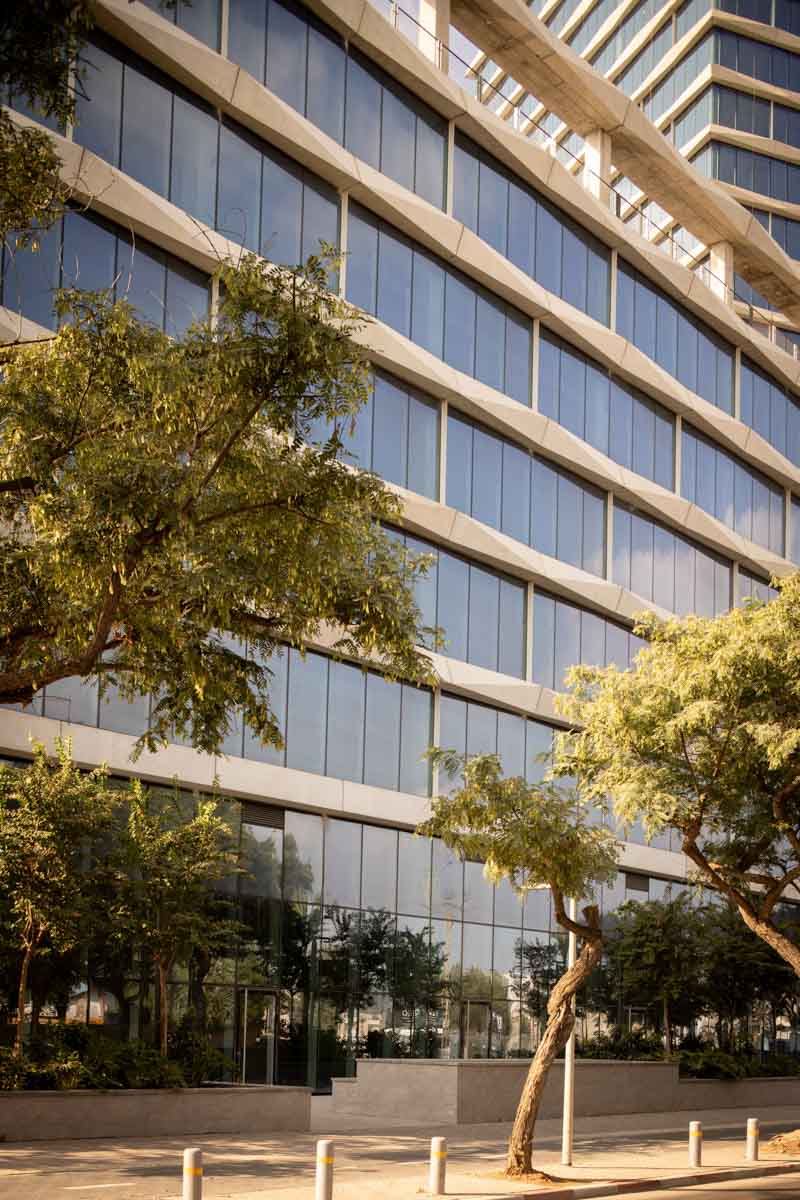

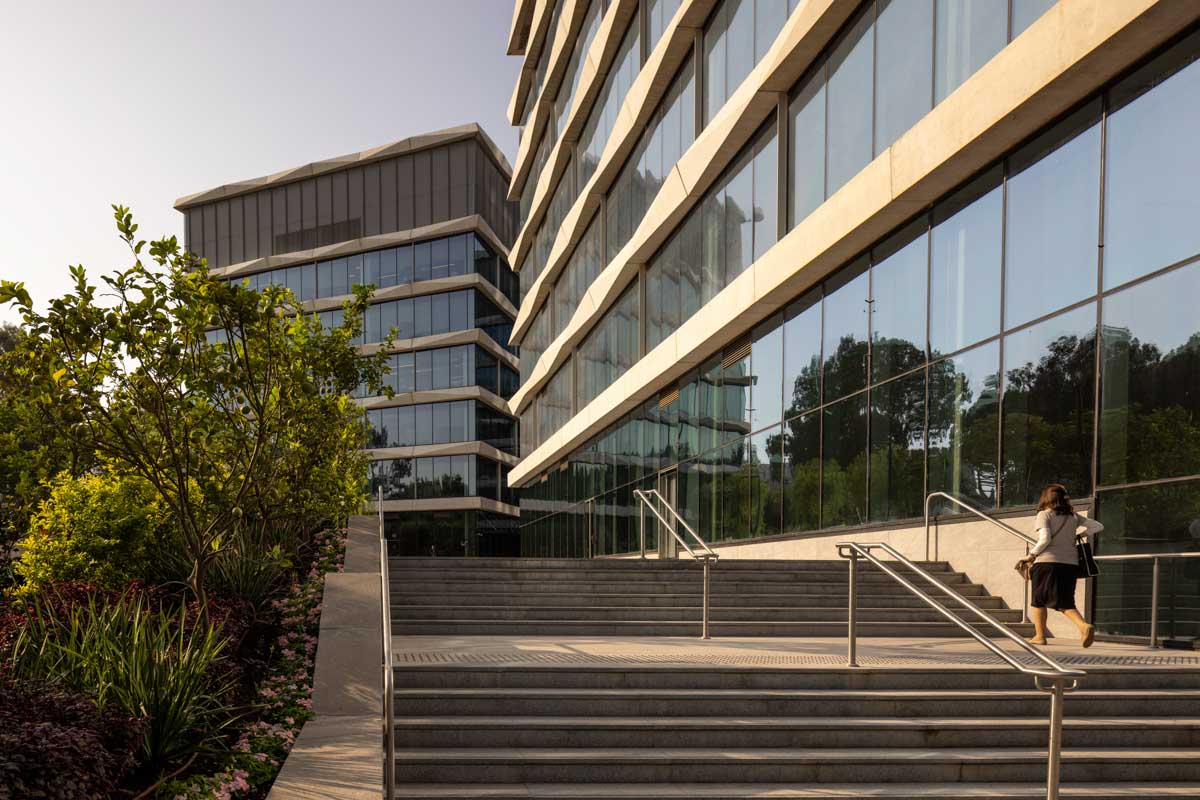

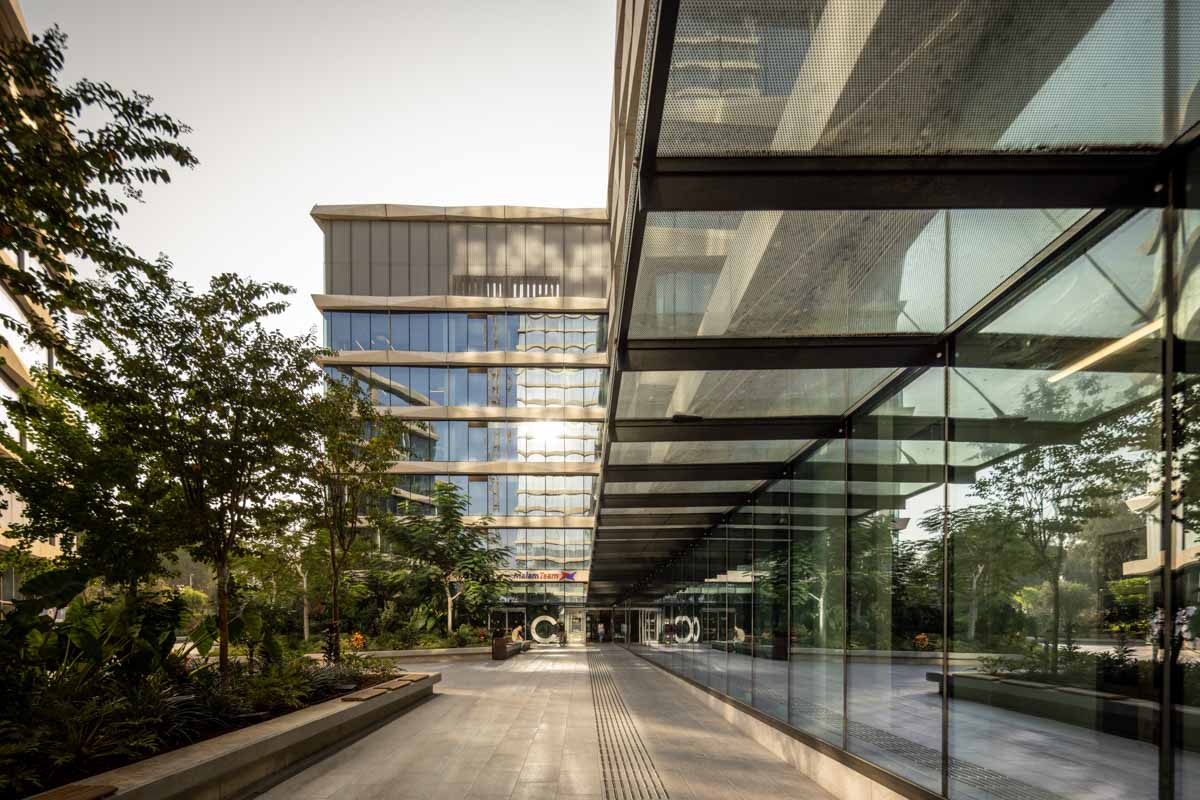

The building façades are clad with structural curtain walls made up of insulating glass units in the compositions 6-20-8, 6-16-6, and 6-18-10, featuring solar control glazing of the STOPRAY VISION 52T type by AGC, with 50% light transmittance and 28% energy transmittance. Additionally, a ceramic dot pattern with 50% coverage has been printed on parts of the building to provide additional shading to areas exposed to sunlight for most of the day. In the open spaces of the complex, glass canopies have been installed with a laminated double-glazing configuration, 8mm + 8mm , with an exceptionally durable SGP interlayer. A ceramic dot print was also applied to provide the necessary shading during peak hours of the day.
